Description
Hikvision DS-2AE5223TI-A PTZ Dome Camera price Bangladesh | Hikvision distributor in Bangladesh | Hikvision service provider in Bangladesh | Hikvision 1MP IP Camera distributor in Bangladesh | Hikvision 2MP IP Camera distributor in Bangladesh | Hikvision 3MP IP Camera distributor in Bangladesh | Hikvision 4MP IP Camera distributor in Bangladesh |

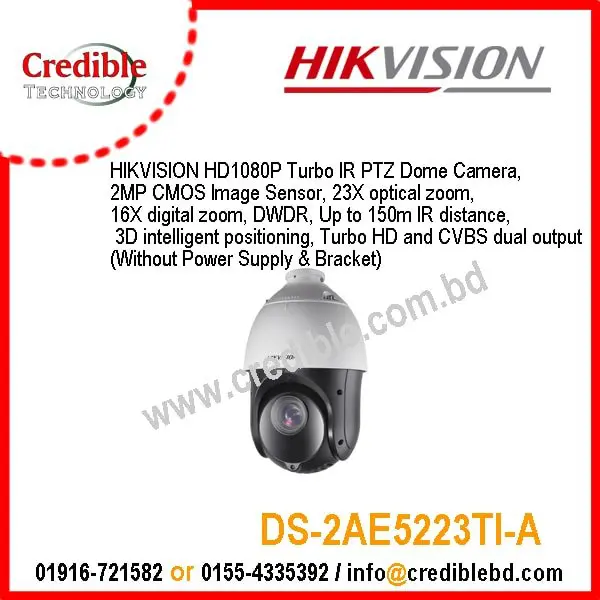

Hikvision DS-2AE5223TI-A price Bangladesh
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | Color: 0.05Lux@(F1.4,AGC ON) B/W: 0.005Lux@(F1.4,AGC ON) |
| White Balance: | | | Auto / Manual / ATW / Indoor / Outdoor |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| WDR: | | | DWDR |
| Shutter Time: | | | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16x |
| Privacy Masking: | | | 8 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 4-92mm, 23x |
| Zoom Speed: | | | Approx.3.0s(Optical Wide-Tele) |
| Angle of View: | | | 49-2.2 degree (Wide-Tele) |
| Minimum Working Distance: | | | 10-1000mm(Wide-Tele) |
| Aperture Range: | | | F1.4~F3.5 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s |
| Tilt Range: | | | -5°~90° (Auto Flip ) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 256 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Alarm | ||
| Alarm Input: | | | 2 |
| Alarm Output: | | | 1 |
| Input & Output | ||
| Turbo HD Output: | | | 1 turbo HD1080p output, BNC |
| Monitor Output: | | | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| General | ||
| RS-485 Protocols: | | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English / Chinese |
| Power Supply: | | | 24V AC |
| Power Consumption: | | | Max. 20W (Heater On), Max. 12W(Heater Off) |
| Working Temperature/Humidity: | | | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Dimensions: | | | Φ185mm)×330(mm) (Φ7.28”×12.99”) |
| Weight (approx.): | | | 4kg (8.81Ibs) |
| Mount Option: | | | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ |
