HAC-HFW1100S Dahua IP camera price list

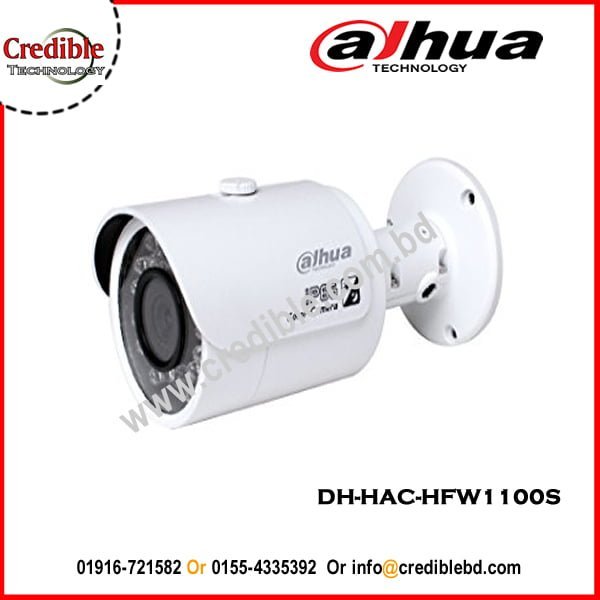

1MP HDCVI IR Bullet Camera
- The parameters and datasheets below can only be applied to 1100-S3 series
- Max 30fps@720P
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR length 30m, Smart IR
- IP67, DC12V
| Camera | |
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | 1280(H)×720(V), 1MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.05Lux/F2.0, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 18 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F2.0 |
| Angle of View | H: 72.3°(91.6°/46°) |
| Focus Control | N/A |
| Close Focus Distance | 500mm (400mm/1300mm) 19.69” (15.75”/51.18”) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| Video | |
| Resolution | 720P (1280×720) |
| Frame Rate | 25/30fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL 60950-1+CAN/CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | N/A |
| Electrical | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 3.8W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection &Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 164.7mm×70mm×71.6mm (6.48″×2.76″×2.82″) |
| Net Weight | 0.35kg (0.77lb) |
| Gross Weight | 0.44kg (0.97lb)
|
