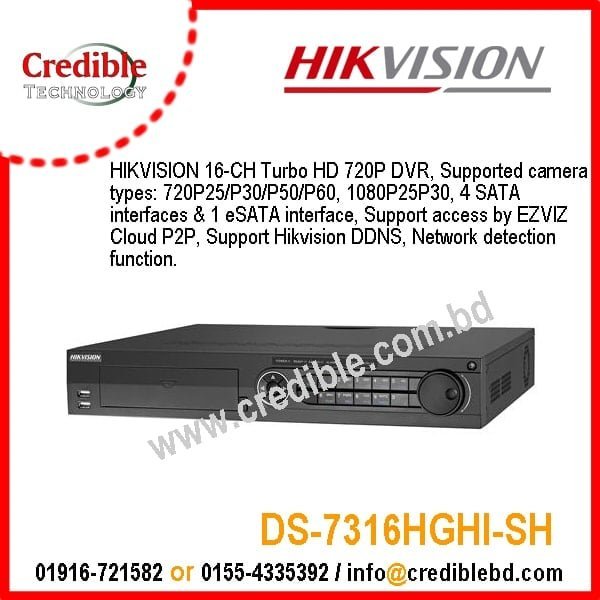

Hikvision DS-7316HGHI-SH HDTVI DVR Price in Bangladesh
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 4-ch |
| Video Compression: | | | H.264 |
| Analog and HD-TVI video input: | | | 16-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | | | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| IP Video Input: | | | 2-ch (up to 18-ch) Up to 2MP resolution |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch RCA(2.0Vp-p, 1kΩ) |
| Video/Audio Output | ||
| CVBS Output: | | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate: | | | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | | | 32 Kbps-6 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Audio Output: | | | 2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | | | 16-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | ||
| Interface Type: | | | 4 SATA interfaces for 4 HDDs; 1 eSATA interface |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | | | 3 USB2.0 interfaces |
| Serial Interface: | | | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface |
| Alarm Input: | | | 16-ch |
| Alarm Output: | | | 4-ch |
| General | ||
| Power Supply: | | | 100 ~ 240VAC, 47 ~ 63HZ |
| Consumption: | | | ≤ 55W |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Chassis: | | | 19-inch rack-mounted 1.5U chassis |
| Dimensions: | | | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) |
| Weight: | | | ≤5Kg (11.0lb) |
