Description
Hikvision DS-9632NI-XT NVR Price in Bangladesh | Hikvision DS-9632NI-XT Price in Bangladesh | Hikvision NVR Price list in Bangladesh | Hikvision NVR service provider in Bangladesh | Hikvision NVR supplier in Bangladesh | Hikvision 4 Channel NVR price in Bangladesh | Hikvision 8 Channel NVR price in Bangladesh | Hikvision 16 Channel NVR price in Bangladesh | Hikvision 32 Channel NVR price in Bangladesh |

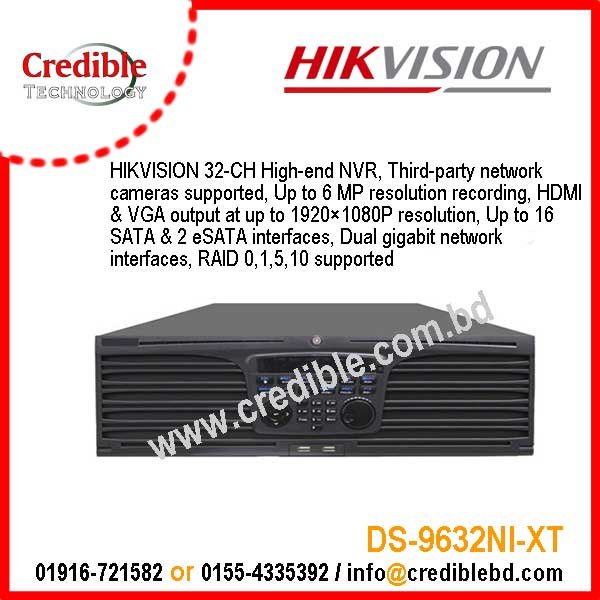

Hikvision DS-9632NI-XT NVR Price in Bangladesh
| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 64-ch |
| Two-way audio input: | | | 1-ch, BNC(2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 200Mbps |
| Outgoing bandwidth: | | | 160Mbps |
| Remote connection: | | | 128 |
| Video/Audio Output | ||
| CVBS Output: | | | 1-ch, BNC(1.0Vp-p, 75Ω) Resolution: 704×576(PAL); 704×480(NTSC) |
| HDMI Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | | 2-ch, BNC(Linear Electrical Level, 600Ω) |
| Synchronous Playback: | | | 16-ch |
| VGA Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | ||
| Live view / Playback: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | | | 16-ch@720P, 8-ch@1080P |
| Hard Disk | ||
| SATA: | | | 16 SATA interfaces for 16 HDDs |
| Interface Type: | | | 2 eSATA interfaces |
| Capacity: | | | Up to 6TB capacity for each HDD |
| External Interface | ||
| Network Interface: | | | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface: | | | RS-232, RS-485, Keyboard |
| USB Interface: | | | 3, USB2.0 |
| Alarm In: | | | 16-ch |
| Alarm Out: | | | 4-ch |
| General | ||
| Power Supply: | | | 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz |
| Consumption(without hard disk and POE): | | | ≤45W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 19-inch rack-mounted 3U chassis |
| Dimensions: | | | 445 × 496 × 146 mm |
| Weight(without HDD): | | | ≤ 12.5 Kg / 27.56 lb |
