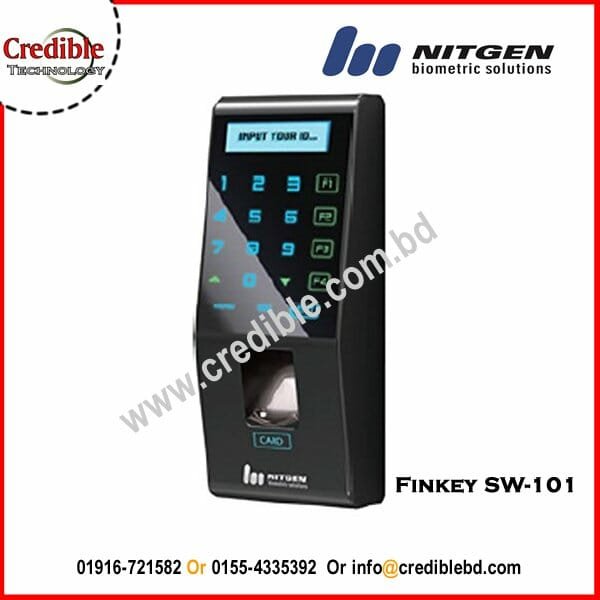

Nitgen Finkey access SW-101 Fingerprint scanner

Description

Nitgen Finkey access SW-101 Fingerprint scanner attendance machine. NITGEN Access Control System and Time Attendance system Bangladesh. NITGEN distributor in bangladesh.

Nitgen Finkey access SW-101 Biometric reader

The NITGEN sensor has been optimally designed with SEIR (Surface Enhanced Irregular Reflection), incorporating high resolution and endurance (scratches, chemical corrosion, ESD, physical impacts). Its compact size and outstanding durability has made it one of the most advanced products in the world, to successfully eliminate the optical defect of image distortion. The NITGEN sensor can be easily embedded in any fingerprint recognition device and external products that are sensitive to environmental factors.

Fingerprint-Thumb Access Control Device in Bangladesh, access control systems provider in Bangladesh, face detection, Biometric, Thumbprint Access Control System and Time Attendance system Bangladesh, Access Control Bangladesh, Access Control in Bangladesh, Access Control Solution in Bangladesh, Attendance System Solution with payroll in Bangladesh, IDTECK, HUNDURY, VIRDI, NITGEN, SUPRIMA, GRANDING, ZKTeco, Products Distributor / Importer in Bangladesh, Car parking Control automation in Bangladesh, Access control automation in Bangladesh, proximity reader in Bangladesh, finger print reader in Bangladesh.

Features :

• Waterproof & Weatherproof
• IP65 rated for outdoor use
• Superior Matching Engine
• 1st in FVC(Fingerprint Verification Competition)
• Auto-on™ Function
• Function Key
• 4 Function keys for user-defined functions (F1~F4)
• Clock In / Clock Out / Absence / Return
• Multifactor Authentication
• Fingerprint, RF card, Password
• Any authentication methods can be used concurrently
• Touch Keypad

CPU 32 bit / 200MHz (Marvell) Memory 8MB DRAM / 8MB Flash Display 122×32 Graphic LCD (Black&White) FP Sensor Type Optical Resolution 500 DPI Authentication Mode Fingerprint, Password, RF Card 1:1 verification Time < 1 sec. 1:N Identification Time < 2 sec.(2,000 templates) Template capacity 2,000 templates(2templates/1finger, 1,000 user) Log capacity 20,000 logs Communication TCP/IP, RS485(TBD), Wiegand In/Out(26/34 bit) Output Relay Deadbolt, EM Lock, Door Strike, Automatic Door Operating Temperature -20~60 ℃ Operation Humidity < RH 90 % Certification KC, CE, FCC Size 77(W) x 178(L) x 50(D) mm

SW101-S   Standard(Fingerprint, Password) SW101-M   Standard, High frequency card(13.56MHz) – Mifare SW101-R   Standard, Low frequency card(125kHz) – HID, EM SW101-MC   Card only, High frequency card(13.56MHz) – Mifare SW101-RC   Card only, Low frequency card(125kHz) – HID, EM
